How to Choose the Best Rigid Flex PCB Manufacturer for Reliable Electronics
Choosing the best rigid flex pcb manufacturer requires more than comparing unit prices or production lead times. Rigid flex printed circuit boards combine rigid PCB sections with flexible circuitry in one integrated structure, making material selection, layer construction, bend design, copper reliability, lamination, impedance control, drilling, plating, and testing especially important. A capable manufacturer should understand both rigid and flexible circuit fabrication and be able to produce boards consistently from prototype through volume production while meeting the technical requirements of the final application.
Rigid flex technology is widely used where conventional cable connections would consume too much space, add assembly complexity, or reduce reliability.
Applications can include medical electronics, aerospace systems, industrial equipment, telecommunications hardware, automotive electronics, wearables, robotics, cameras, sensors, and compact consumer devices.
The right manufacturing partner can help reduce design risk before production begins.
The wrong one can turn a technically sound design into a costly cycle of fabrication defects, redesigns, delayed deliveries, and field failures.
What Is a Rigid Flex PCB?
A rigid flex PCB combines flexible circuit layers with one or more rigid sections.
Instead of connecting separate rigid boards with cables or connectors, the flexible sections become part of the printed circuit itself.
IPC 2223 defines design requirements for flexible and rigid flexible printed boards and covers structures containing single, double, multilayer, or combined rigid and flexible conductive layers.
A typical rigid flex structure may contain:
• Rigid FR4 sections
• Flexible polyimide layers
• Copper conductors
• Coverlay
• Adhesive or adhesiveless materials
• Plated through holes
• Blind or buried vias where required
• Stiffeners
• Controlled impedance traces
• Surface finishes
The exact construction depends on electrical, mechanical, thermal, and reliability requirements.
Why Rigid Flex PCB Manufacturing Is More Complex
A conventional rigid PCB remains mechanically stable during normal use.
A flexible circuit may bend.
A rigid flex board must successfully combine both behaviours within the same construction.
Manufacturers therefore need control over:
• Rigid and flexible material expansion
• Lamination
• Copper thickness
• Coverlay alignment
• Bend areas
• Via placement
• Plating
• Adhesion
• Registration
• Dimensional stability
• Final profile accuracy
Small process variations can have a greater impact when the finished circuit is expected to bend or fit into a tightly constrained mechanical assembly.
7 Smart Ways to Choose the Best Rigid Flex PCB Manufacturer
The strongest supplier is usually the manufacturer that can demonstrate repeatable control over the processes most important to your design.
1. Choose a Best Rigid Flex PCB Manufacturer With Real Flex Experience
Not every PCB factory that makes rigid boards is equally capable of producing rigid flex assemblies.
Rigid flex requires specialised materials, process knowledge, tooling, lamination experience, and quality controls.
Before requesting a quotation, ask about the manufacturer’s experience with:
• Rigid flex multilayers
• Dynamic flex applications
• Static flex applications
• Fine line circuitry
• Controlled impedance
• HDI structures
• Blind and buried vias
• Stiffeners
• Coverlay
• Multiple flex regions
• Complex mechanical outlines
A supplier that regularly manufactures similar products will generally understand the potential fabrication risks earlier in the process.
Best Rigid Flex PCB Manufacturer Experience Should Match the Application
A board used in a low movement consumer product may have very different reliability requirements from a circuit that flexes continuously in medical or industrial equipment.
IPC 6013 recognises several installation uses, including applications where flex occurs only during installation and applications requiring continuous flexing for a specified number of cycles.
Tell the manufacturer how the flex region will actually be used.
That information can affect:
• Copper selection
• Bend geometry
• Layer arrangement
• Material type
• Stiffener placement
• Trace routing
• Testing expectations
2. Verify IPC Standards and Quality Requirements
Rigid flex design and manufacturing should be based on recognised industry standards.
IPC 2223 provides design requirements specifically for flexible and rigid flexible printed boards and is intended to be used alongside IPC 2221.
IPC 6013 defines qualification and performance requirements for flexible and rigid flex printed boards, including multilayer constructions, plated through holes, and different performance classifications.
Ask whether the manufacturer can build to the class required by your product.
Relevant documentation may also involve:
• IPC 2221
• IPC 2223
• IPC 6013
• IPC A 600
• IPC 4101
• IPC 4202
• IPC 4203
• IPC 4204
IPC’s own flexible PCB design material identifies IPC 2223 for flex design, IPC 6013 for flex performance, IPC 4202 for flexible base dielectrics, IPC 4203 for cover and bonding materials, and IPC 4204 for flexible metal clad dielectrics.
Standards should be specified in the fabrication documentation rather than assumed.
3. Review Material Capability Carefully
Material selection has a major influence on rigid flex reliability.
Flexible sections commonly use polyimide because of its mechanical flexibility and thermal characteristics.
The rigid portions may use conventional PCB laminates selected according to the electrical and thermal requirements of the design.
Ask the manufacturer what materials it regularly stocks.
Important questions include:
• Which polyimide systems are available?
• Are adhesiveless flex laminates supported?
• Which copper types are available?
• What rigid laminates are supported?
• Which coverlays are available?
• Can specific material brands be controlled?
• What dielectric thickness options are available?
• Can high temperature materials be processed?
• Are material certificates available?
Material availability also affects lead time.
A board that requires uncommon thicknesses or specialty laminates may take longer if materials need to be sourced specifically for the project.
4. Confirm Controlled Impedance Capability
High speed rigid flex circuits often require controlled impedance.
The manufacturer must be able to control:
• Trace width
• Copper thickness
• Dielectric thickness
• Material dielectric properties
• Etching tolerances
• Stackup
A proper impedance workflow should begin before production.
The manufacturer should review the stackup and provide achievable trace dimensions based on the selected materials.
Do not finalise critical impedance traces based only on theoretical calculations without confirming the actual fabrication stackup.
Impedance Coupons and Testing
For critical designs, ask whether the manufacturer provides impedance coupons and test reporting.
The exact testing requirements should be included in the fabrication documentation.
A measured result provides stronger production evidence than simply assuming that nominal geometry will produce the expected impedance.
5. Evaluate Testing and Inspection
Inspection is critical because many defects cannot be identified through a simple visual check.

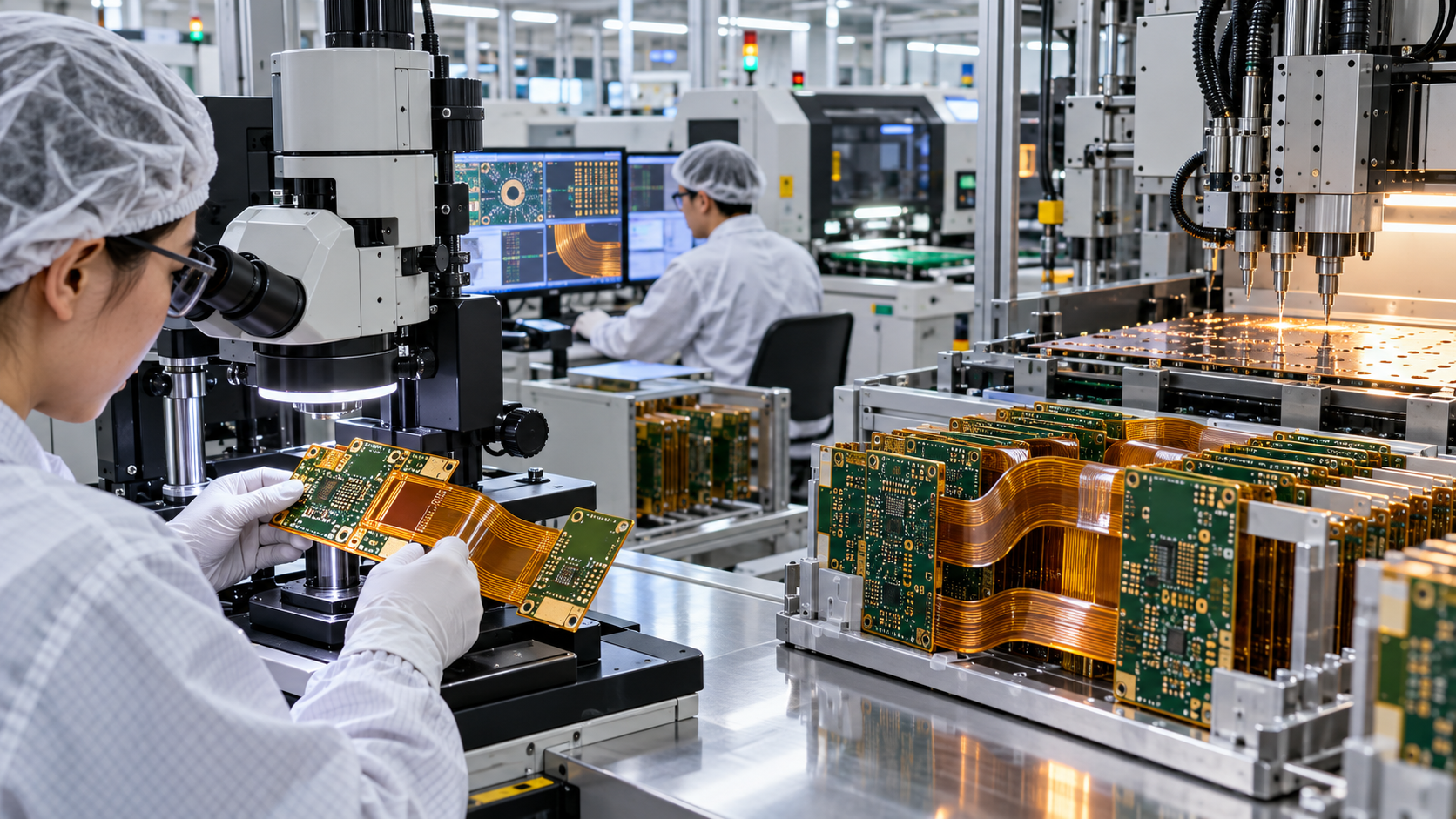

A capable rigid flex PCB factory may use several inspection methods depending on the design.
These can include:
• Automated optical inspection
• Electrical testing
• Impedance testing
• Microsection analysis
• Dimensional inspection
• X ray inspection where appropriate
• Final visual inspection
• Continuity testing
• Isolation testing
• Flex testing for defined applications
Testing requirements should be determined according to the risk and end use of the product.
Medical, aerospace, automotive, and other high reliability applications may require additional documentation and process controls.
6. Review Prototype and Production Capability
A manufacturer may produce excellent prototypes but struggle when order volumes increase.
Another supplier may specialise in volume production while being less flexible during early engineering development.
The best partner should match the complete product roadmap.
Ask about:
• Prototype quantities
• Engineering lots
• Pilot production
• Medium volume production
• High volume capability
• Repeat order management
• Tooling retention
• Material availability
• Lot traceability
Using the same capable manufacturer through development and production can reduce process changes.
However, companies should still evaluate whether prototype processes accurately represent the intended volume production process.
7. Evaluate Engineering Support Before Price
Rigid flex designs frequently benefit from manufacturer feedback before fabrication.
A strong engineering team may identify problems such as:
• Vias too close to bend areas
• Inappropriate copper geometry
• Weak transition zones
• Difficult coverlay openings
• Unrealistic tolerances
• Insufficient spacing
• Poor panel utilisation
• Incompatible stackups
• Mechanical conflicts
A low quotation can quickly become expensive if several board revisions are needed.
Good design for manufacturability feedback can therefore provide more value than the lowest initial unit price.
Best Rigid Flex PCB Manufacturer Design Review
Design review should happen before fabrication data is released into production.
The manufacturer should compare the design against its actual process capabilities.
Bend Area Review
The flexible portion requires particular attention.
Traces should generally be routed in ways that reduce mechanical stress in bending regions.
Sharp geometric changes and unnecessary stress concentration should be avoided.
Design requirements depend on whether the flex section bends once during assembly or repeatedly throughout the product’s operating life.
Transition Area Review
The point where the flexible region enters the rigid section is mechanically important.
Poor stackup transitions can create stress.
Manufacturers experienced with rigid flex construction can recommend design changes that improve manufacturability.
Hole and Via Review
Via placement should consider both electrical and mechanical behaviour.
Holes in inappropriate flex locations can create stress concentration.
The design should clearly define where plated holes, blind vias, buried vias, or microvias are required.
Understanding Rigid Flex PCB Stackups
Rigid flex stackups can be much more complicated than conventional rigid PCB constructions.
A design may include:
• Two flexible copper layers
• Several rigid signal layers
• Ground planes
• Power planes
• Adhesive layers
• Coverlay
• Bonding materials
• Rigid laminates
The stackup must satisfy electrical requirements while also allowing the flexible region to bend as intended.
Symmetry and Manufacturing Stability
Stackup design can affect warpage and dimensional stability.
Manufacturers should review material thickness and construction balance before production.
For high layer count boards, small stackup changes can also influence final thickness and impedance.
Flex Copper Selection
Copper behaves differently depending on how the circuit will move.
For applications involving repeated movement, copper type and grain structure can become important design considerations.
Manufacturers should understand whether the circuit is:
• Static
• Installation flex
• Dynamic flex
The intended movement should be clearly communicated at quotation stage.
Adhesive Versus Adhesiveless Flex Materials
Flexible laminates can use adhesive based or adhesiveless constructions.
Adhesiveless material can offer advantages in certain high performance designs because it can reduce overall thickness and remove an additional adhesive layer from the copper to dielectric interface.
However, the right material depends on:
• Cost
• Thickness
• Bend requirement
• Temperature
• Electrical requirements
• Availability
A capable manufacturer should explain which materials are compatible with its process and the intended application.
Coverlay Requirements
Flexible circuits commonly use coverlay instead of conventional rigid board solder mask across the flex region.
Coverlay protects the copper while maintaining flexibility.
Important factors include:
• Opening registration
• Adhesive thickness
• Pad exposure
• Bend location
• Fine pitch features
For dense designs, coverlay openings can become a significant manufacturability consideration.
Discuss minimum opening sizes and registration tolerances early.
Surface Finish Options
Rigid flex boards can use several final surface finishes depending on assembly and application requirements.
Common options may include:
• ENIG
• Immersion silver
• Immersion tin
• OSP
• Hard gold in selected contact areas
The right finish depends on:
• Component assembly
• Shelf life
• Contact requirements
• Wire bonding requirements
• Cost
• Environmental exposure
Do not choose a finish only because it is commonly used on another PCB.
Rigid Flex PCB Testing Requirements
A purchase order should clearly define the required testing.
Electrical Testing
Electrical testing verifies continuity and isolation.
This can help detect:
• Opens
• Shorts
• Connectivity errors
High density boards may require specialised test strategies.
Microsection Analysis
Microsections allow internal structures to be examined.
They can provide information about:
• Plating thickness
• Hole quality
• Layer registration
• Lamination
• Internal copper structures
For higher reliability programs, microsection requirements may be part of lot acceptance.
Dimensional Inspection
Rigid flex boards often fit inside tightly constrained mechanical assemblies.
Critical dimensions should be clearly identified in fabrication drawings.
Certifications to Review
Certifications should match the industry and product requirements.
Depending on the application, buyers may consider:
• ISO 9001
• ISO 13485 for relevant medical manufacturing environments
• IATF 16949 for relevant automotive supply chains
• AS9100 for aerospace quality systems
A certification does not automatically mean every PCB produced by a company is suitable for every industry.
Buyers should verify the scope of certification and whether the required processes are included.
Best Rigid Flex PCB Manufacturer for Medical Electronics
Medical electronics may require:
• Strong traceability
• Controlled processes
• Detailed inspection
• Reliable documentation
• Stable supply
• Change control
Examples of applications can include:
• Portable monitoring devices
• Imaging systems
• Wearable medical electronics
• Diagnostic equipment
• Surgical equipment
The manufacturer should understand the reliability and documentation requirements that apply to the specific product.
Best Rigid Flex PCB Manufacturer for Aerospace Applications
Aerospace electronics can place strong demands on size, weight, vibration resistance, thermal performance, and reliability.
Rigid flex technology can reduce connectors and wiring while supporting compact packaging.
Manufacturers serving aerospace projects may need tighter:
• Process control
• Documentation
• Material traceability
• Inspection
• Lot control
• Change management
Procurement specifications should clearly identify the applicable requirements.
Rigid Flex PCB for Automotive Electronics
Modern vehicles contain increasing quantities of electronics.
Rigid flex designs may be used where compact packaging or mechanical integration is important.
Automotive environments can involve:
• Temperature variation
• Vibration
• Long service life
• High reliability expectations
Material and qualification requirements should therefore be defined according to the exact application.
Prototype Rigid Flex PCB Manufacturing
Prototypes allow engineers to evaluate:
• Mechanical fit
• Bend behaviour
• Electrical performance
• Connector placement
• Assembly
• Thermal behaviour
Prototype orders should use materials and manufacturing processes that are reasonably representative of production where possible.
A prototype built with different materials may not behave exactly like the final production version.
Rigid Flex PCB Manufacturing Lead Time
Lead time depends on complexity.
Factors can include:
• Layer count
• Material availability
• HDI requirements
• Controlled impedance
• Surface finish
• Testing
• Special documentation
• Quantity
• Panel complexity
• Tooling
Simple rigid flex boards may move faster than highly complex multilayer constructions.
Buyers should avoid setting unrealistic schedules that encourage process shortcuts.
Comparing Rigid Flex PCB Quotations
Two quotations may appear similar while covering very different production assumptions.
Compare:
• Material brand
• Stackup
• Copper thickness
• Board thickness
• Surface finish
• Testing
• Impedance requirements
• Tooling
• Engineering charges
• Delivery terms
• Quantity
• Quality documentation
• Shipping
The lowest unit price is not always the lowest total cost.
Poor quality can result in:
• Assembly loss
• Rework
• Product delays
• Field failures
• Engineering time
• Replacement costs
Questions to Ask a Rigid Flex PCB Manufacturer
Before approving a supplier, ask:
• How many years have you produced rigid flex boards?
• Which IPC standards can you build to?
• Which performance classes do you support?
• What flex materials do you stock?
• Can you manufacture adhesiveless flex?
• What is your minimum line and spacing capability?
• Can you control impedance?
• Do you provide impedance test reports?
• Can you produce blind and buried vias?
• What electrical testing is included?
• Can you provide microsections?
• What quality certifications do you hold?
• Can you support prototype through volume production?
• How is material traceability managed?
• How are engineering changes controlled?
Clear answers can reveal far more about manufacturing capability than marketing claims.
Common Rigid Flex PCB Manufacturing Mistakes
Choosing a Manufacturer Only by Price
Rigid flex fabrication requires specialised capability.
A very low price may not provide equivalent materials, testing, or engineering support.
Finalising the Design Before Supplier Review
Early design for manufacturability feedback can prevent expensive revisions.
Ignoring Bend Conditions
Static and dynamic flex applications should not automatically use identical design assumptions.
Using Unclear Fabrication Documentation
The manufacturer should receive complete information about stackup, materials, tolerances, standards, testing, and finish.
Assuming Every Factory Has the Same Capabilities
Manufacturing limits for line width, spacing, vias, coverlay, impedance, and material thickness vary significantly between suppliers.
Why Supplier Communication Matters
Complex PCB projects generate engineering questions.
Slow or unclear communication can delay production.
A reliable manufacturer should be able to communicate about:
• Stackup
• DFM issues
• Materials
• Testing
• Schedule
• Yield concerns
• Engineering changes
• Quality problems
Technical communication should involve people who understand fabrication rather than only sales staff.
Frequently Asked Questions
What should I look for in the best rigid flex pcb manufacturer?
Look for proven rigid flex experience, IPC capability, suitable materials, controlled impedance, strong testing, engineering support, quality certifications, and scalable production.
Which IPC standard applies to rigid flex PCB design?
IPC 2223 specifically covers design requirements for flexible and rigid flexible printed boards and is used alongside the broader IPC 2221 design standard.
Which IPC specification covers rigid flex PCB performance?
IPC 6013 covers qualification and performance requirements for flexible printed boards, including multilayer rigid flex constructions.
What materials are commonly used in rigid flex PCBs?
Rigid sections commonly use rigid laminate systems, while flexible regions commonly use polyimide based materials, copper, coverlay, and associated bonding materials.
Can rigid flex PCBs support controlled impedance?
Yes. Experienced manufacturers can produce controlled impedance rigid flex designs when stackup, dielectric properties, trace geometry, copper thickness, and testing are properly controlled.
Should I prototype before ordering rigid flex PCB production?
Yes. Prototyping can help confirm mechanical fit, bending behaviour, electrical performance, assembly requirements, and manufacturability before committing to larger production volumes.
Conclusion
Selecting the best rigid flex pcb manufacturer requires careful evaluation of engineering capability, IPC standards, materials, impedance control, testing, quality systems, and production scalability. A strong supplier should understand both the electrical and mechanical behaviour of rigid flex designs while providing useful design for manufacturability feedback before production. Comparing suppliers on total manufacturing capability rather than price alone can reduce development risk, prevent costly revisions, and improve long term product reliability.
